Product Description:

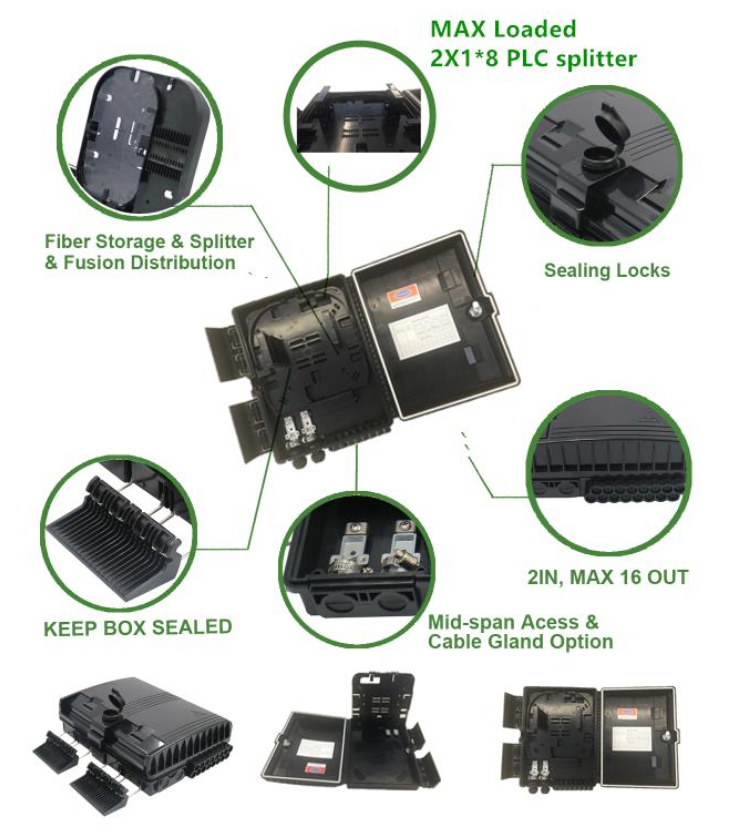

16 Cores fiber optic access termination box is able to hold up to 16 subscribers. It is used as a termination point for the feeder cable to connect with drop cable in FTTx network system. It integrates fiber splicing, splitting, distribution, storage and cable connection in one solid protection box. The optical distribution box is a solution that facilitates the installation of optical termination in branch networks for FTTH environments.
Feature:
1) User familiar industry interface, using high impact plastic PC/ABS
2) Can accommodate 1x8 PLC splitter and 1x16 PLC splitter
3) The high strength plastic, anti-ultraviolet radiation and ultraviolet radiation resistant, resistant to rain
4) Up to 16 FTTH drops ,2 inlet ports, 16 outlet ports
5) Wall and pole mountable
Specifications
Dimension( L×W×H )
306mm×240mm×106mm
Weight(gross)
1.68kg
Function
cable terminal,passive splitter
Material
ABS
Max ratio
1:16
Max capacity(F)
16
Environment
1. Tempreture: -40°C—60°C
2. Ambient Humidity : 95% above 40°C
3. Air pressure: 62kPa—105kPa
Accessories:
1. 2 hoops (outdoor air frame) Optional
2.wall mount kit 1 set
3.two lock keys used waterproof lock
Key words:
SUP-FTTH910B
