GYTS 2-60 Core Outdoor Optical Cable
I want to make an inquiry
Product description
Construction
Version:0.9 StartHTML:0000000105 EndHTML:0000002891 StartFragment:0000000141 EndFragment:0000002851
1. Colored fiber
Coated outside diameter：125.0±0.1um
Optical fiber diameter：242±7um
UV color fiber: Standard chromatogram
-Blue,Orange,Green,Brown,Gray/Slate,White,Red,Black,Yellow,Violet,Rose/Pink,Aqua
2. Tube filling compound(Gel)
3. PBT loose tube
4. Steel wire Central strength member
5. Core filler
6. Steel Polyethylene Laminate
7.Black PE out jacket Outside diameter： 9.5±0.2mm

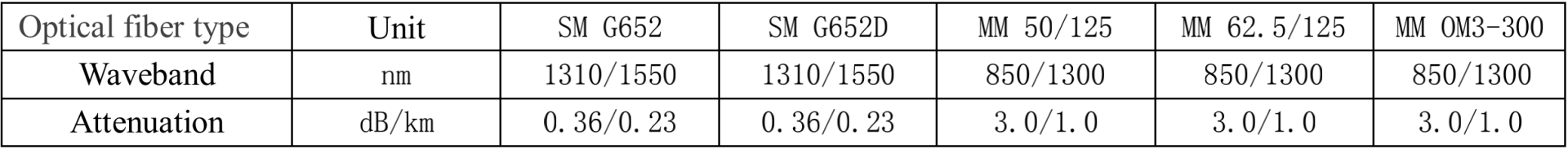

Parameters of fiber

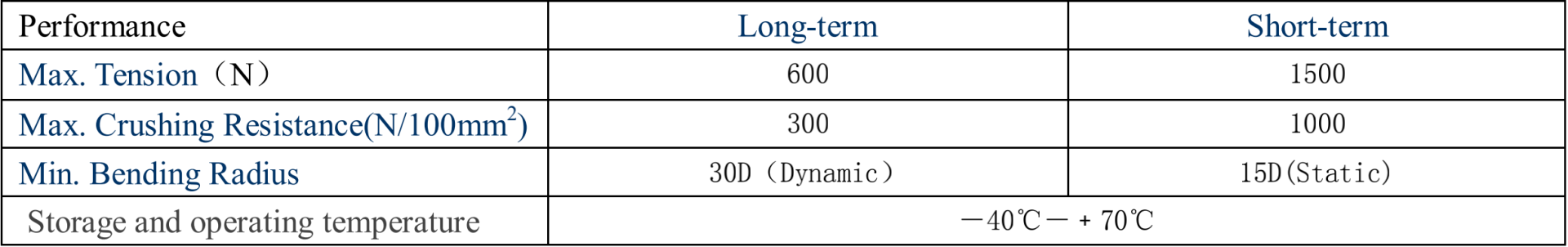

Product parameters
Appearance and packaging
1. No damage on the surface; no trachoma.
2. Wooden tray packaging; wood whole seal packaging
3. Segment length: no less than 1000M. The segment length of each tray of the same batch shall be similar as
much as possible. Other lengths can be agreed upon through consultation.
4. Report certificate: It includes optical cable inspection number, optical cable type, core number, optical fiber
type, length, etc
