GYXTW 1-12 Core Outdoor Optical Cable
I want to make an inquiry
Product description
Construction
1. Colored fiber
Coated outside diameter：125.0±0.1um
Optical fiber diameter：242±7um
UV color fiber: Standard chromatogram
-Blue,Orange,Green,Brown,Gray/Slate,White,Red,Black,Yellow,Violet,Rose/Pink,Aqua
2. Fiber Gel
3. PBT loose tube
5. Water blocking tape
6. PSP
4. Steel wire
7.Black PE outer sheath Cable diameter：9.0±0.2mm

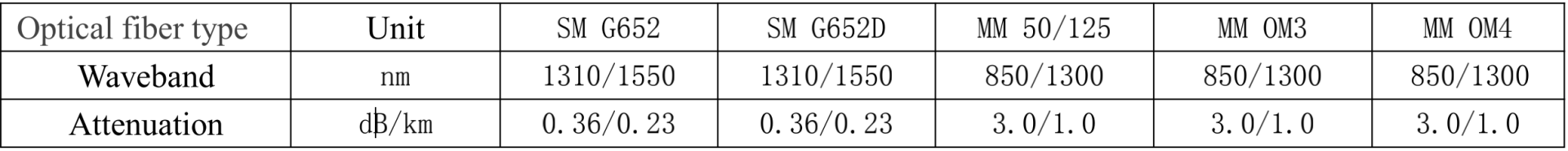

Parameters of fiber

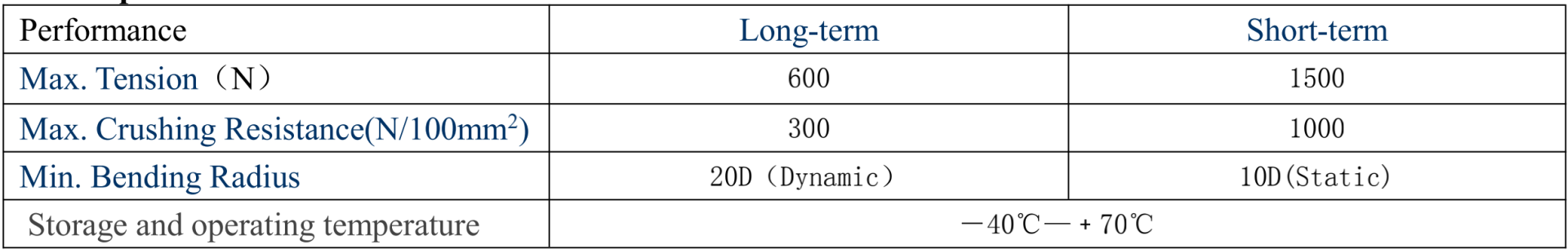

Product parameters
Appearance and packaging
1. No damage on the surface; no trachoma.
2. Wooden tray packaging; wood whole seal packaging
3. Segment length: no less than 1000M. The segment length of each tray of the same batch shall be similar as
much as possible. Other lengths can be agreed upon through consultation.
4. Report certificate: It includes optical cable inspection number, optical cable type, core number, optical fiber
type, length, etc
