Optical Termination Panel
Product Description:

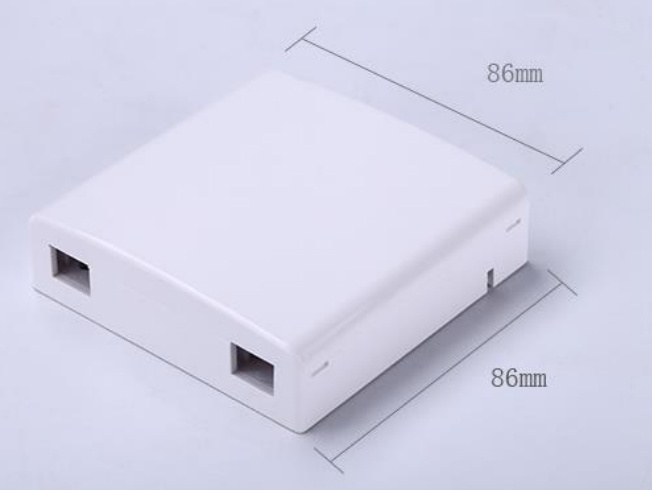

Square Plastic Shell 2 Holes FTTH fiber panel fiber optic terminal junction box 86 information panels 86 Desktop Box White：
Indoor Fiber Optic Cable Box & Patch Panel are used in the end termination of residential buildings and villas, to fix and splice with pigtails; Can be installed on the wall; May adapt variety of optical connection sty les; Optical fiber can be managed effectively.Indoor wall or rack mounted, plastic shell, 2 holes design,screws are included here for easy to mount.
Feature:
1.reasonable inner space design
2.sutable bending radius
3.protect optical fiber
4.realize FTTD(fiber to the desktop)system
5.L86xW86xD27mm
Applications:
A user end product to realize optical fiber to desktop solution.
It can be used in home or working area to accomplish double-
core fiber access and port output.
Used in the end termination of residential buildings and villas, to
fix and splice with pigtails.
Used in FTTH indoor application, home or work area
Provide users with optical access or data access
Suitable for 2 pcs SC adapters
May store surplus fiber inside, easy for operation
Specifications
ITEM
Technical Parameters
Applicable for
3.0 x 2.0 mm Drop cable
Optical fiber diameter
125μm (657A&657B )
Tight buffer diameter (μm )
250μm
Fiber mode
Single mode
Operation time
About 30s(no fiber cut)
Average Insert loss
≤0.15dB(1310nm& 1550nm)
Return loss
>40dB
Fastening strength of naked fiber
>5N
Fastening strength of naked fiber holder
>8N
Tensile strength
>50N
Using temperature
-40℃~+70℃
On-line tensile strength (50 N)
△ IL<0.2dB& Delta; RL ≤ 5dB
Repeatability(10 times)
△IL<0.2dB& Delta; RL ≤5dB
Key words:
SUP-F01
