Product Discription
4 Ports Fiber optic mini ftth terminal box
Fiber optic FTTH terminal box is available for the distribution and terminal connection for various kinds of optical fiber system , especially suitable for mini-network terminal distribution , in which the optical cables, patch cords or pigtails are connected.
Specification
Technical Character:
1. Made of cold-rolling steel, static spreading-plastic, color and lustre is uniform, elegant appearance, easy for operation.
2. The box has a pothook, which is convenient to install and dismantle.
3. The box is of unique structure, reasonable layout, and has adequate room for operation.
4. Adjustable clamp seal ring and reinforce configuration, which could adjust different sizes of cables flexibly to make sure the cables are tightly.
5. The indoor type is of excellent seal performance, which could prevent water from entering effectively
Specifications:
Environment temperature
-25℃ ~+40℃
Insulation resistance
>2*104MΩ
Humidity
≤85%(at 30℃)
Voltage Strength
15KDC/1min, no arc-over or breakdown
Air Pressure
70kPa - 106kPa
Material
ABS
Size L*W*H(mm)
150*110*30
Product Description
4 core FTTH indoor fiber termination box
The equipment is used as a termination point for the feeder cable to connect with drop cable in FTTH communication network system. The fiber splicing, splitting, distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTH network building.
Product Name
4 ports Desktop Small ftth Box
Material
ABS
Dimension (mm):
150*110*30mm
Ports
4
Adapter installation
4 (SC LC )
Pigtail installation
support
Installation method
Wall-mounted
Application
FTTH FTTB FTTX Network

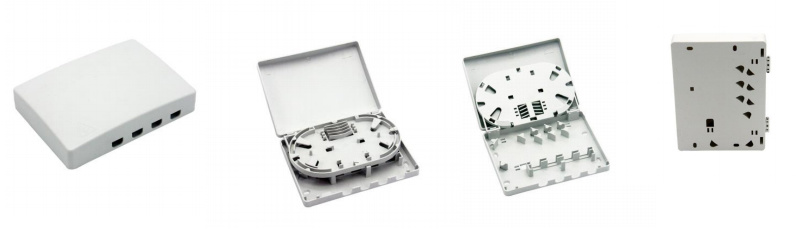

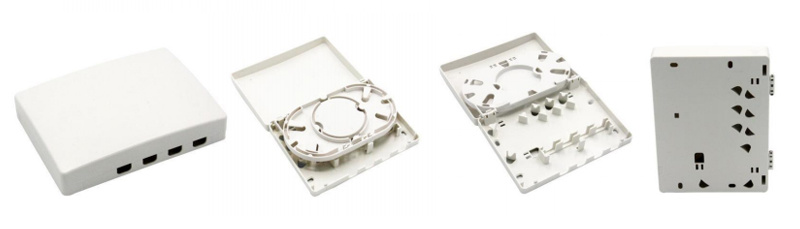

Products Show
Specification
Environmental Requirement
Main Technical Data
Capacity
Working temperature
-40℃~+75℃
Insertion loss
≤0.2dB
4 SC/LC adaptors
Relative humidity
≤85℃(+30℃)
UPC return loss
≥50dB
Atmospheric
70KPa~106KPa
APC return loss
≥60dB
Key words:
SUP-F04A
