SUP-F05

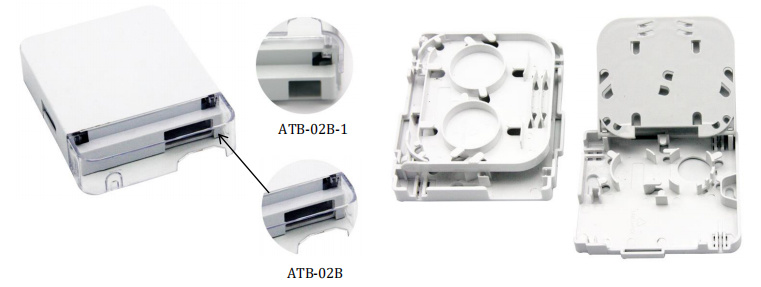

Fiber optical information faceplate box
Description
The fiber optic faceplate is able to hold up to 1 subscribers. It is used as a termination point for the drop cable to connect with patch cable in FTTH indoor application. It integrates fiber splicing, termination, storage and cable connection in one solid protection box.
Features
Dust-proof design with IP-45 Protection level.
Integrated with splice cassette and cable management rods.
Manage fibers in a reasonable fiber radius condition.
Easy to maintain and extend the capacity.
Suitable for the fusion splice or mechanical splice.
Embedded type surface, easy for installation and removal.
1 ports cable entrance for patch cable.
|
SPECIFICATIONS |
|
|
Item |
Parameters |
|
Scope of application |
3.0x2.0mm drop cable or indoor cable |
|
Fiber cladding diameter |
125um(G652&G657 |
|
Fiber diameter |
250um&900um |
|
Fiber type |
SM&MM |
|
Tensile strength |
>50N |
|
Operating temperature |
-40~+85C |
|
Connecting Adapter |
SC |
|
Insertion loss |
<0.2dB |
|
Return loss |
>50dB(UPC),>60dB(PC) |
Configuration
|
Material |
Size |
Max Capacity |
Mounting Way |
Weight |
Color |
|
PC+ ABS |
L*W*H(mm) |
SC Adaptor/ |
Wall Mounting |
85g |
White |
