SUP-F06
Product Description
2 core FTTH indoor fiber termination box
The equipment is used as a termination point for the feeder cable to connect with drop cable in FTTH communication network system. The fiber splicing, splitting, distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTH network building.
|
Product Name |
2 Core FTTH Mini Fiber Optic Distribution Terminal Box |
|
Material |
ABS |
|
Dimension (mm): |
130*84*24 mm |
|
Ports |
2 |
|
Adapter installation |
2 (SC LC ) |
|
Pigtail installation |
support |
|
Installation method |
Wall-mounted |
|
Application |
FTTH FTTB FTTX Network |

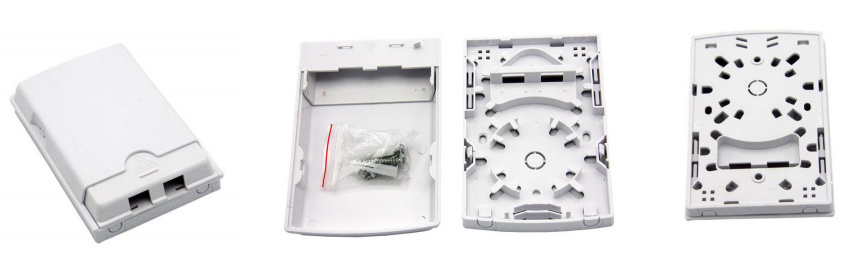

Products Show
Specification
|
Environmental Requirement |
Main Technical Data |
Capacity |
||
|
Working temperature |
-40℃~+75℃ |
Insertion loss |
≤0.2dB |
2 SC/LC adaptors |
|
Relative humidity |
≤85℃(+30℃) |
UPC return loss |
≥50dB |
|
|
Atmospheric |
70KPa~106KPa |
APC return loss |
≥60dB |
|
